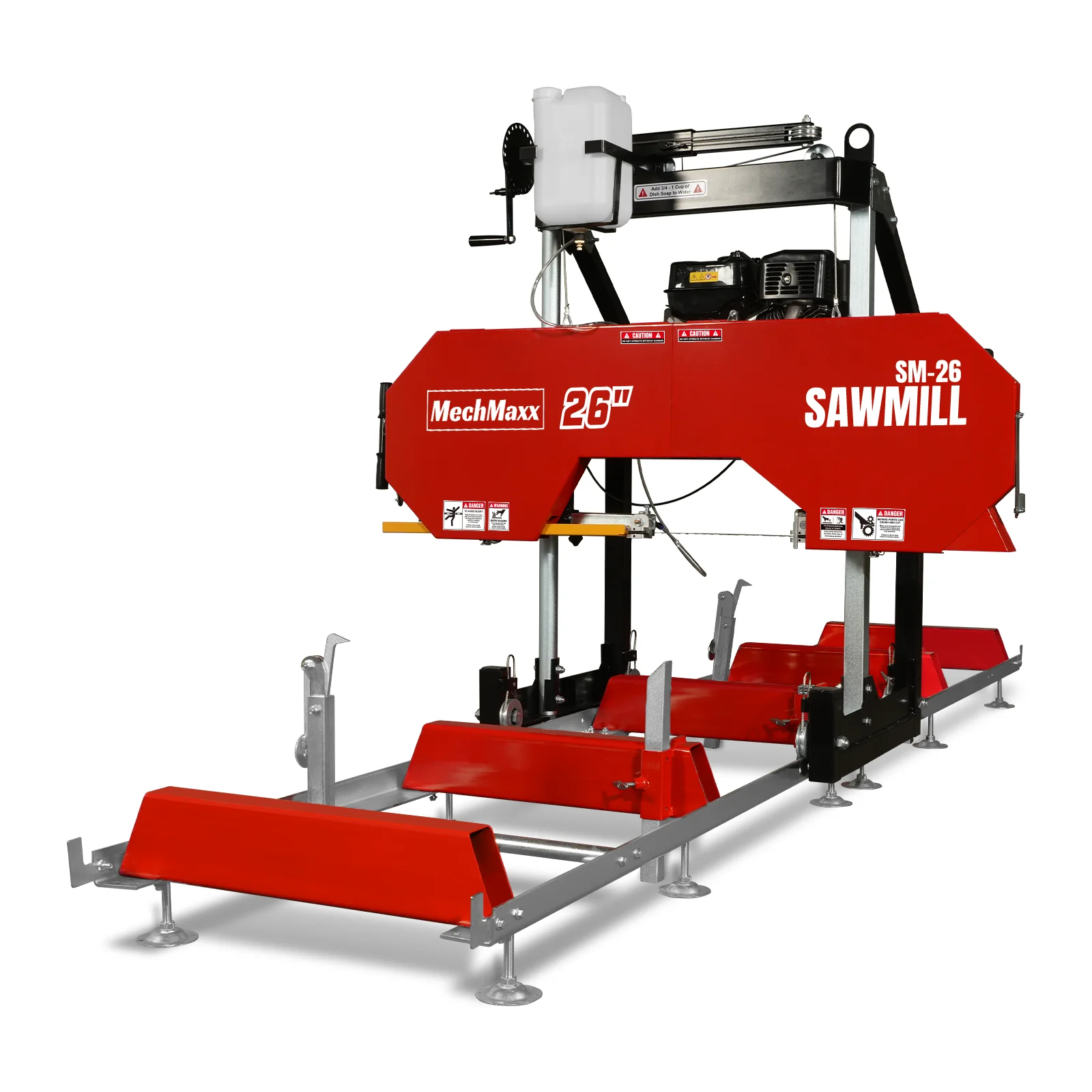

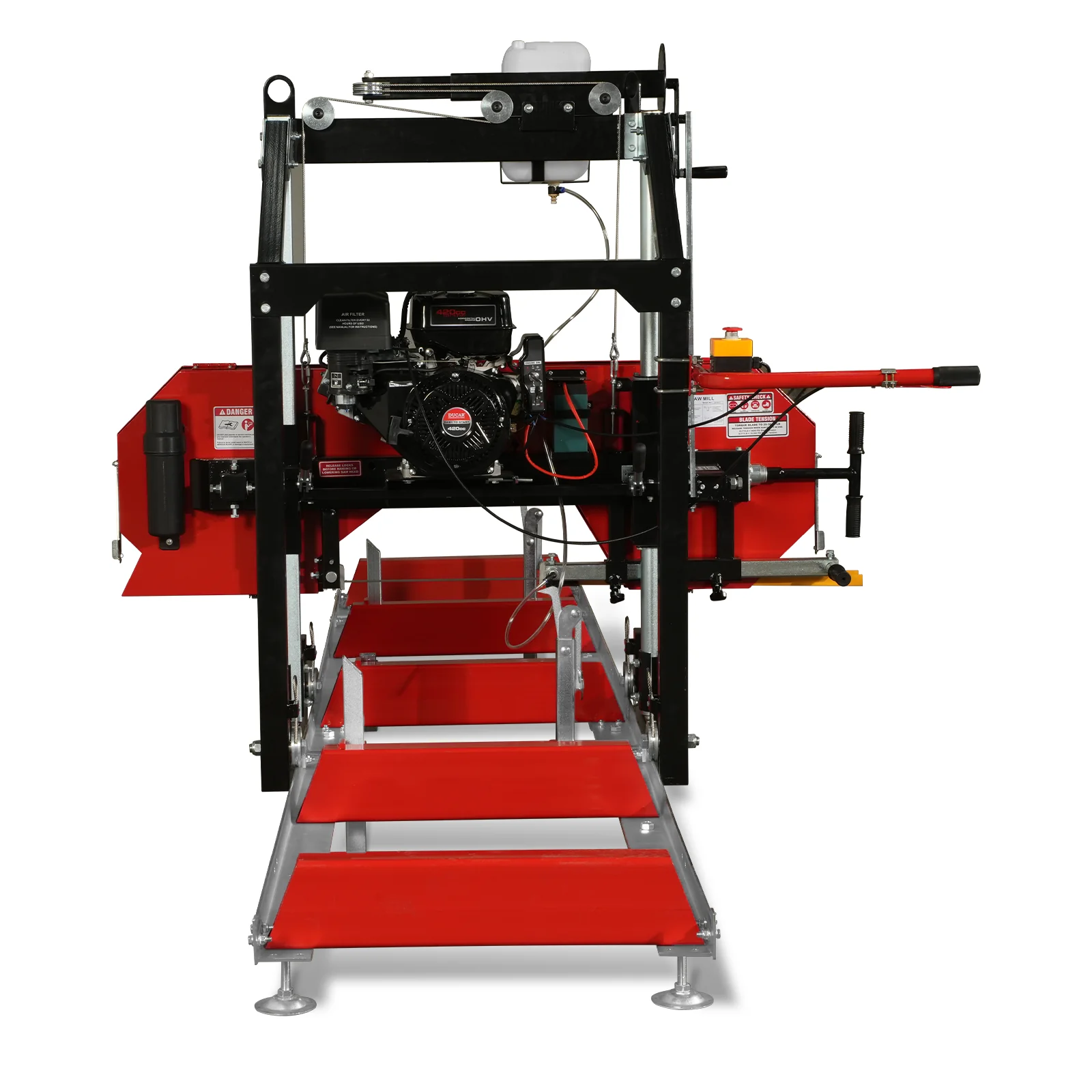

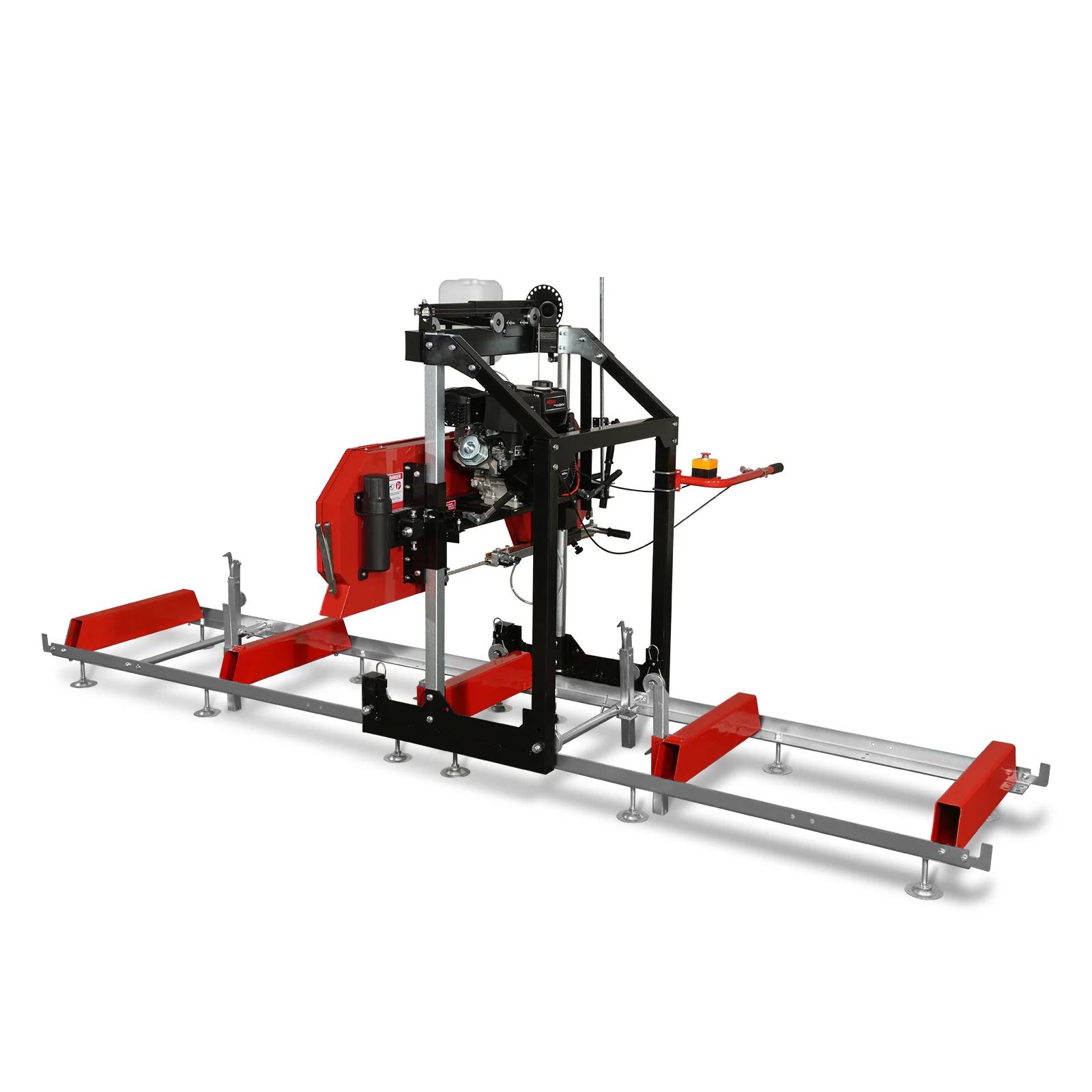

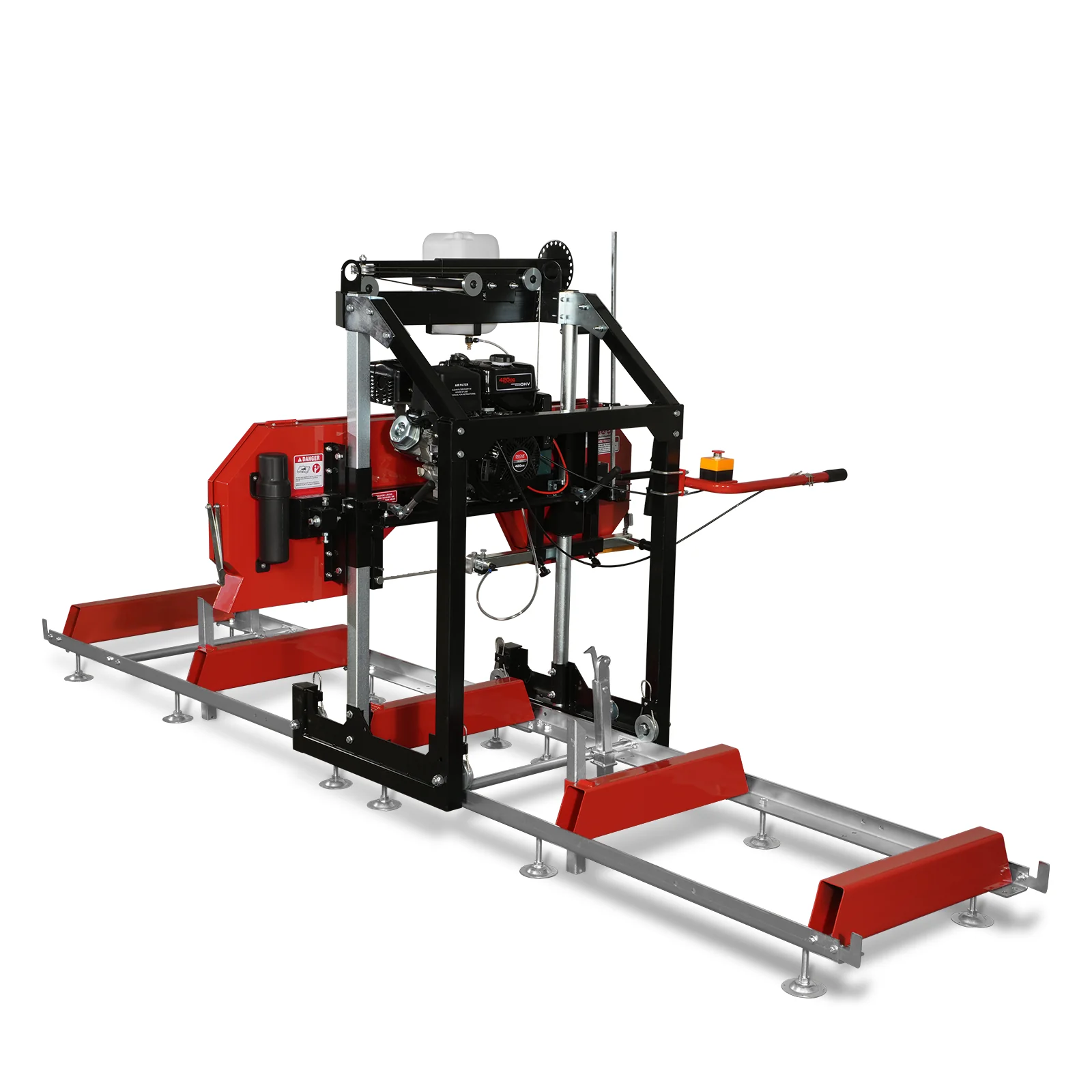

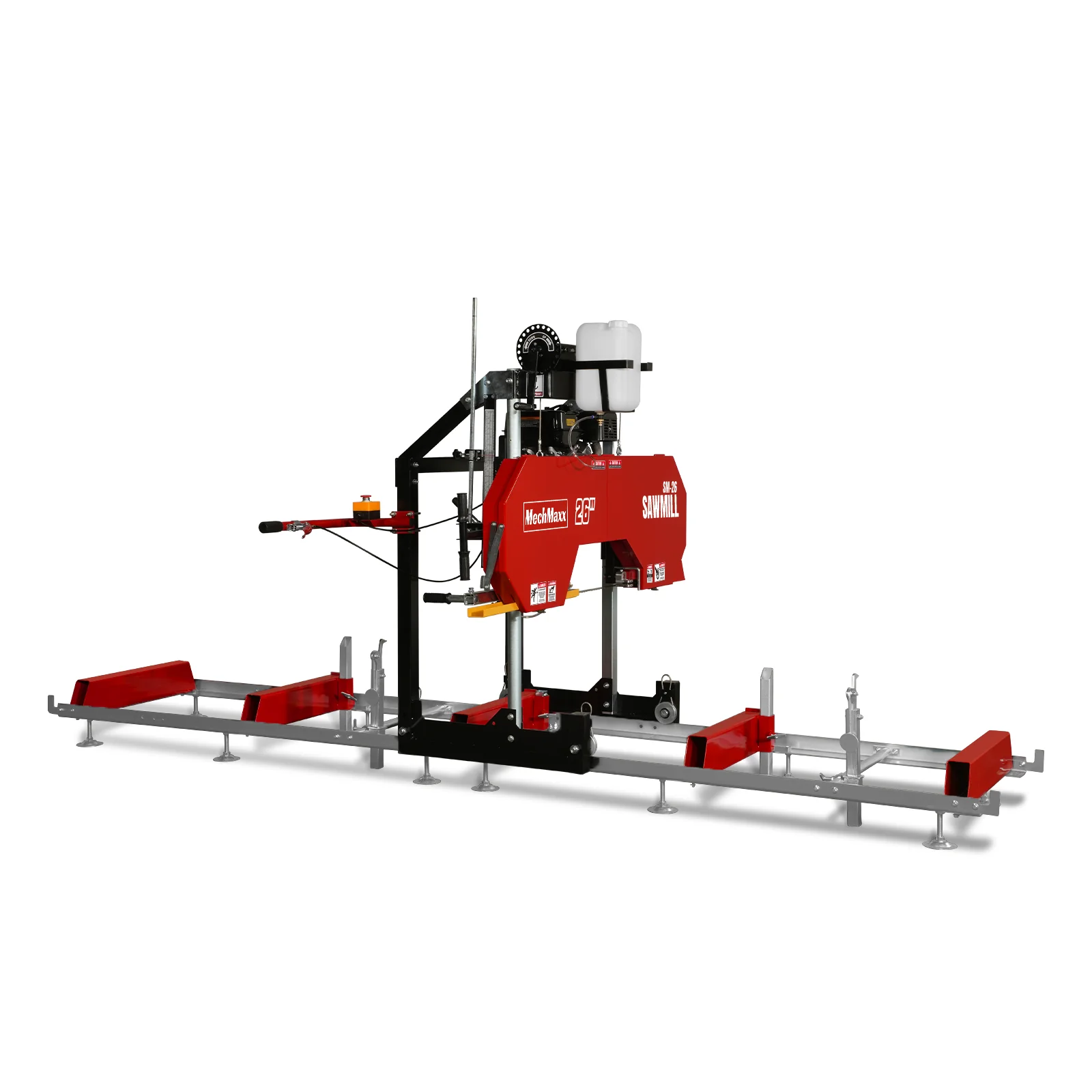

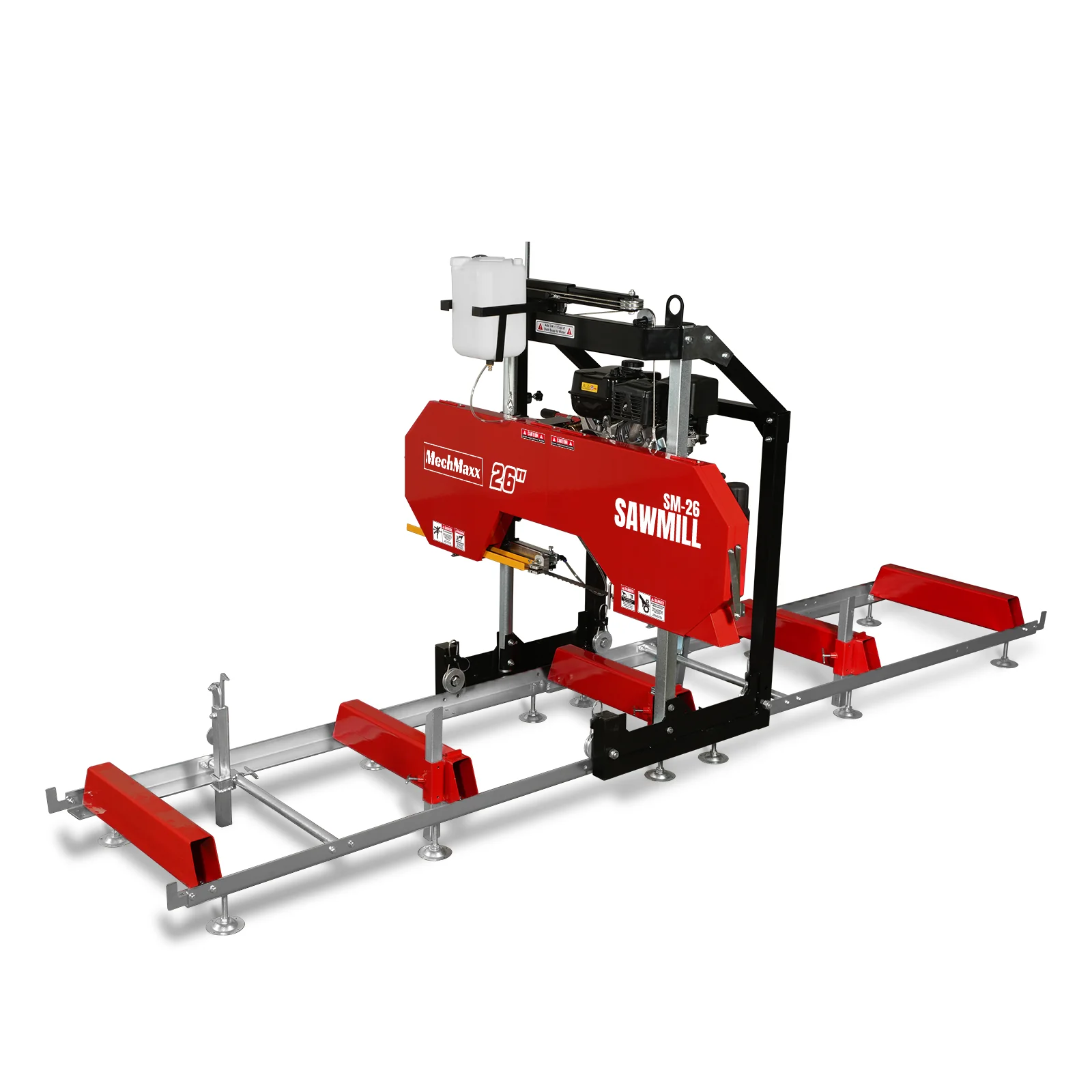

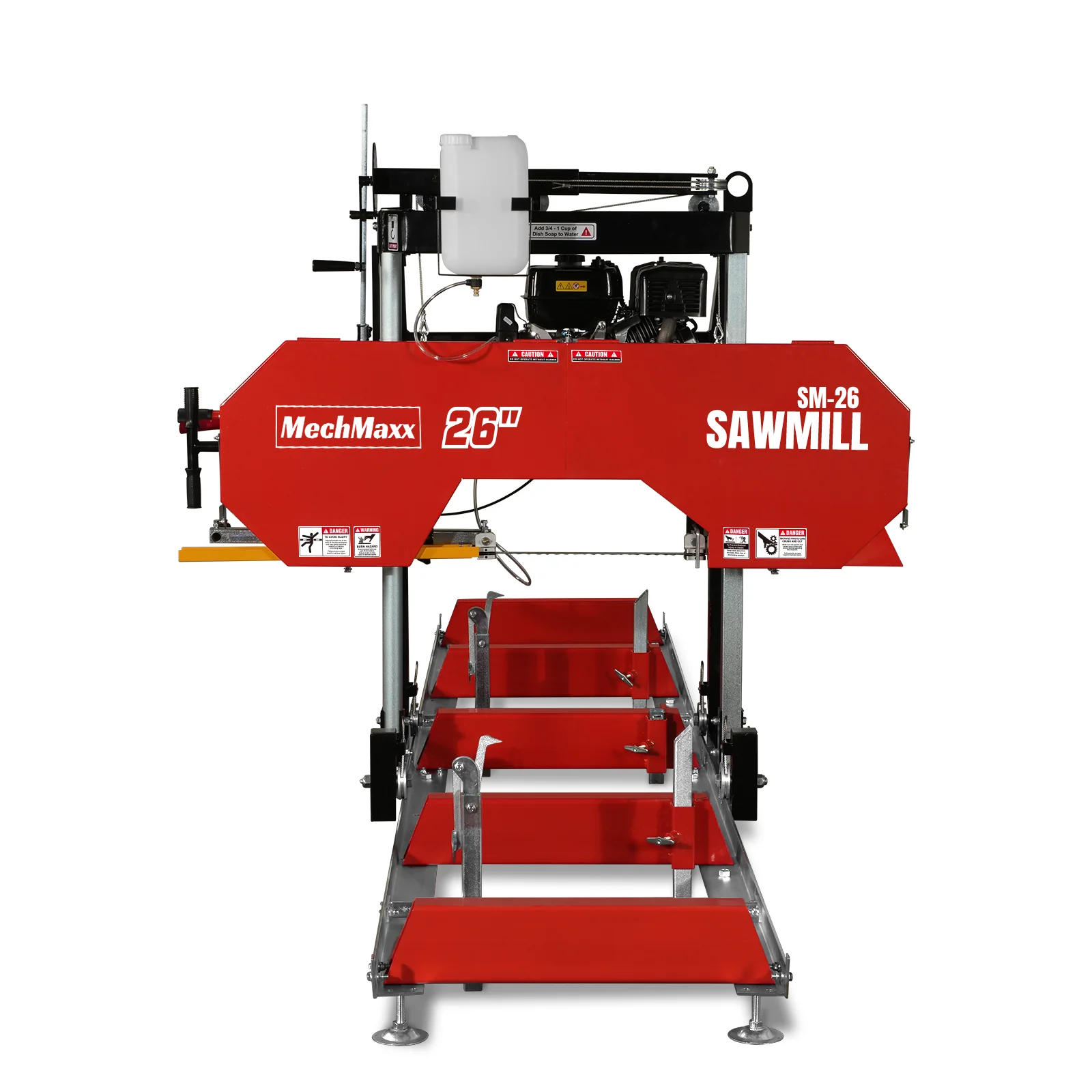

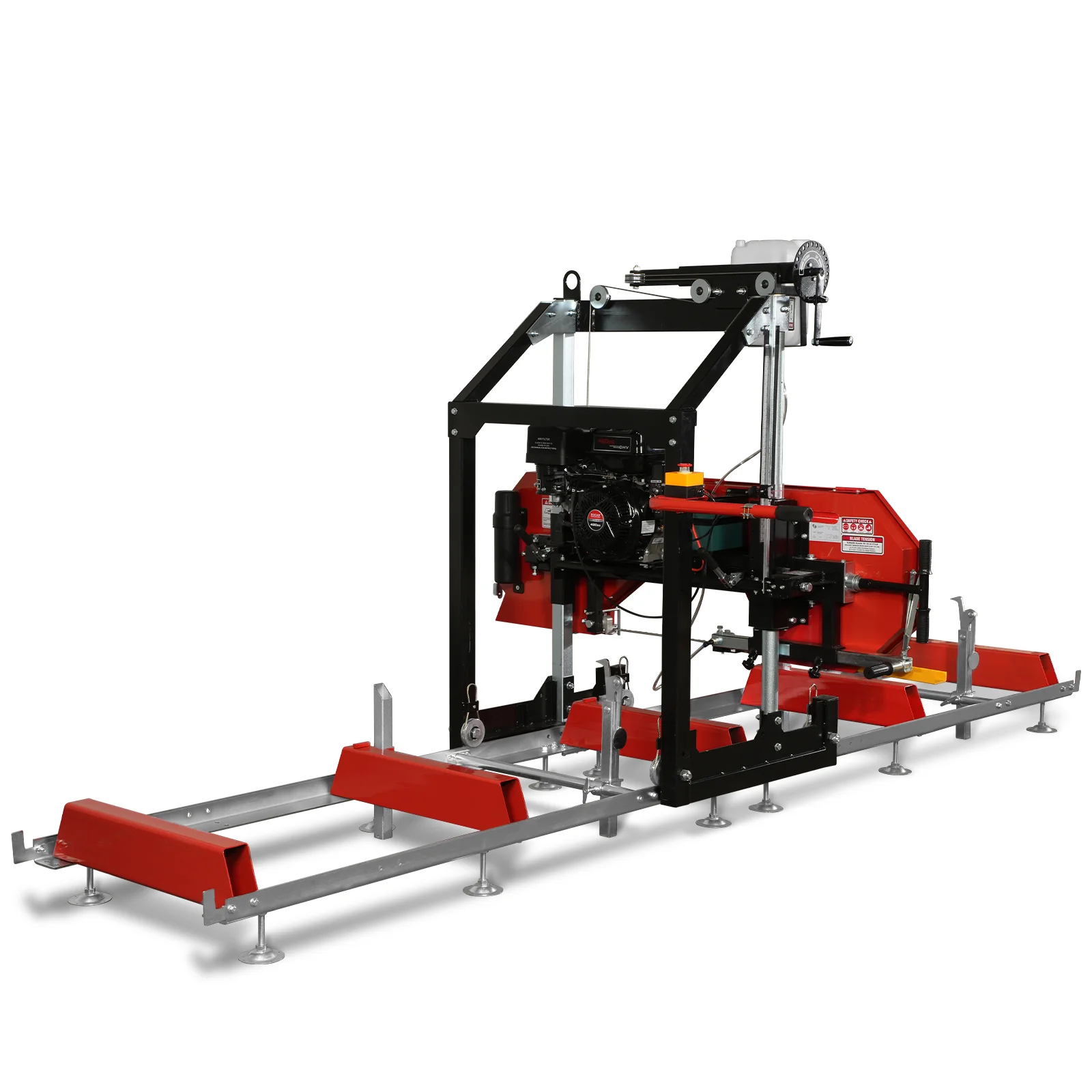

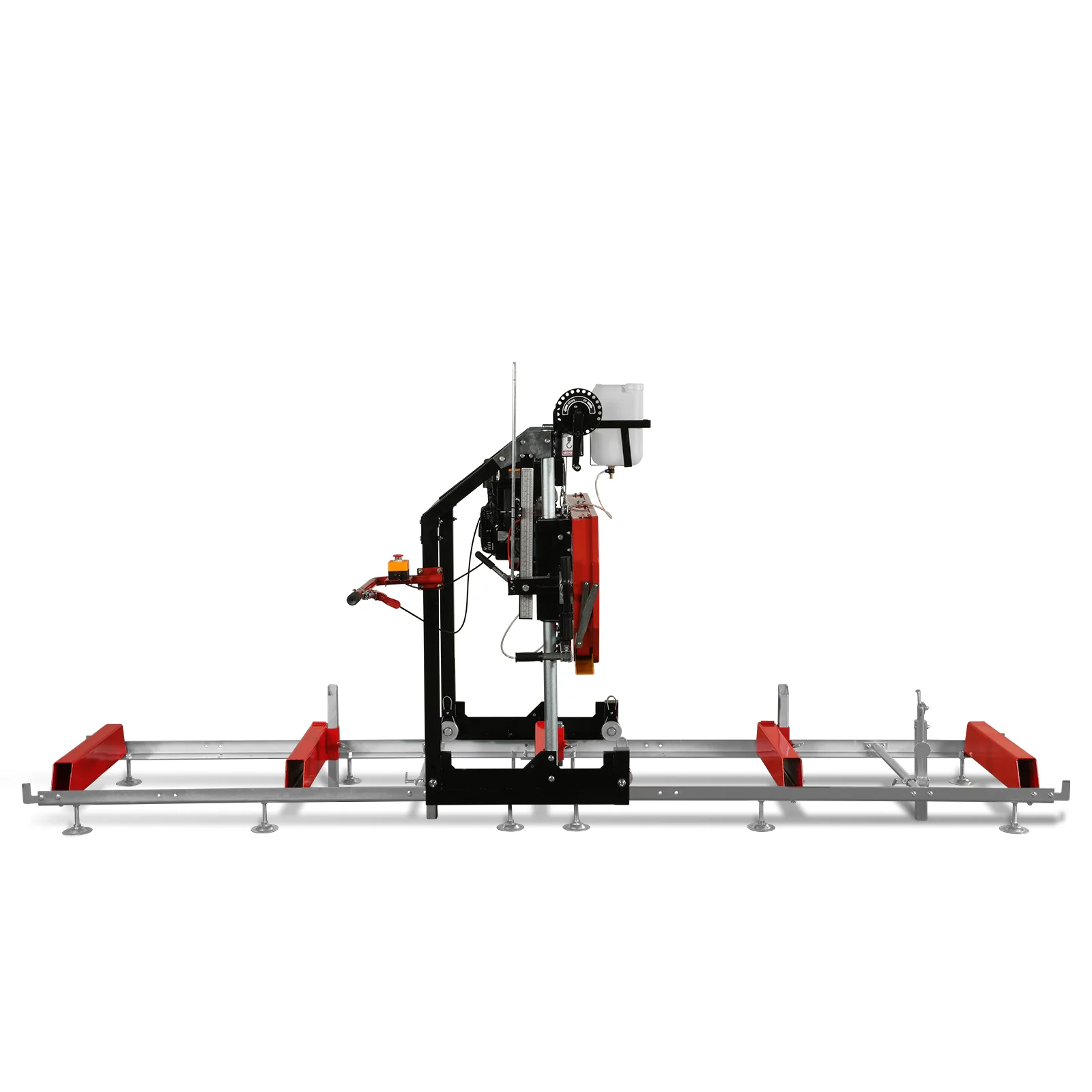

Product Overview :
- Fully capable of cutting large 26″ logs and planks up to 7″ wide in 1/2 the time compared to a regular chainsaw.
- It comes equipped with a reliable, high-performing engine that can be used over an extended period of time.

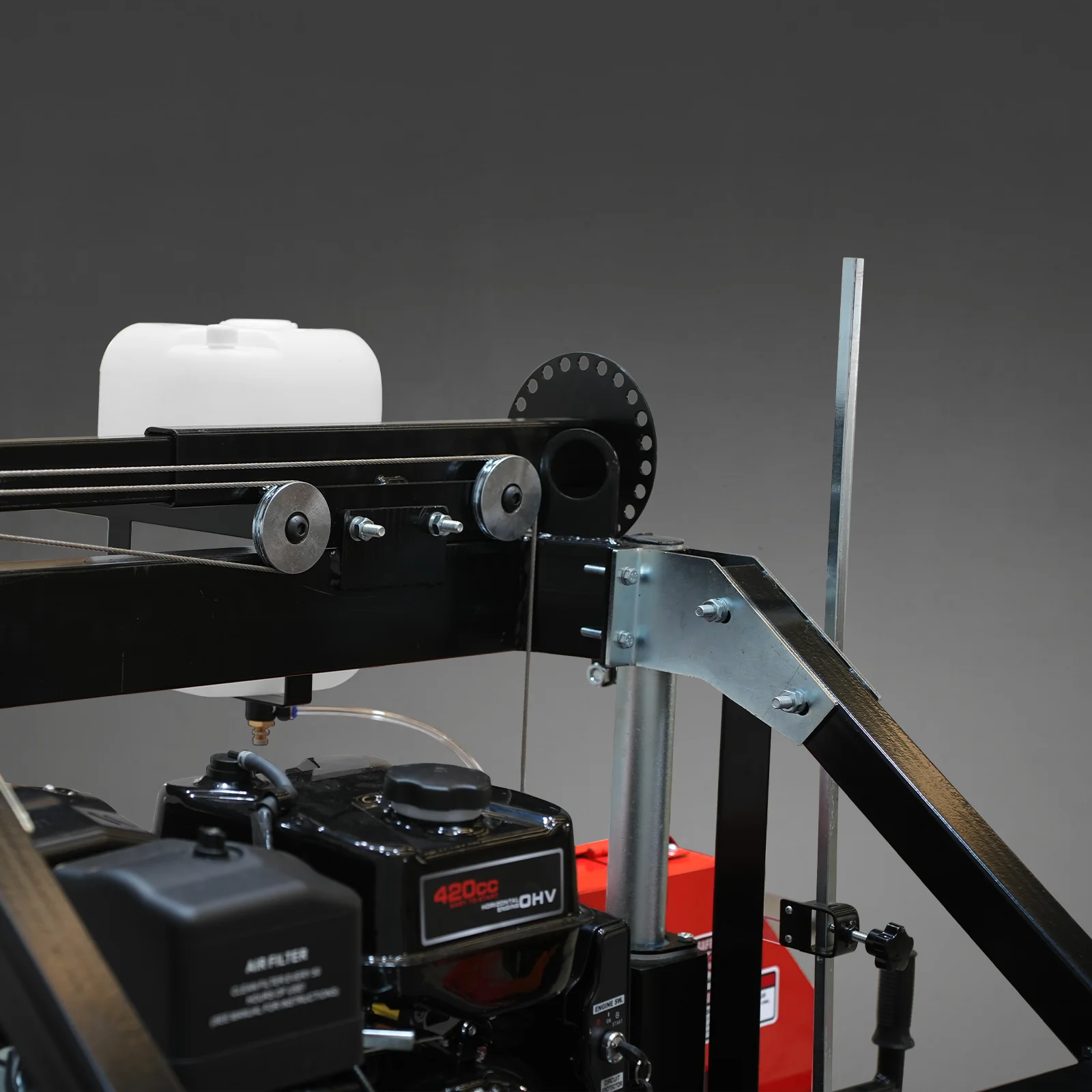

- The gearbox is belt-driven via a clutch, which smoothly transfers power from the engine to the machine; maximizing operating efficiency.
- Can withstand heavy workloads for long hours, even in remote areas.

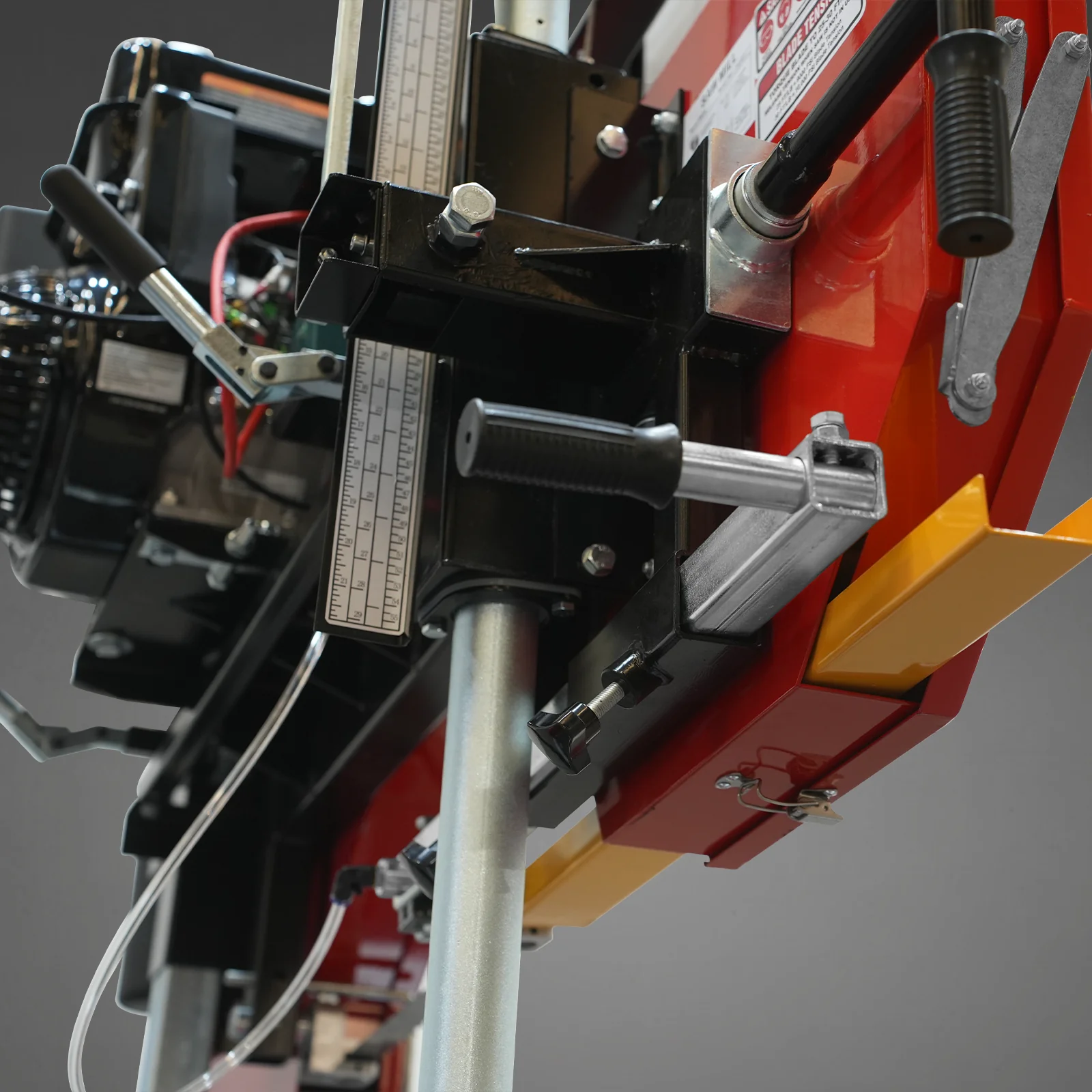

- The cutting thickness of each log can be adjusted. You will have the full ability to mill the wood to any size you for your desired project.

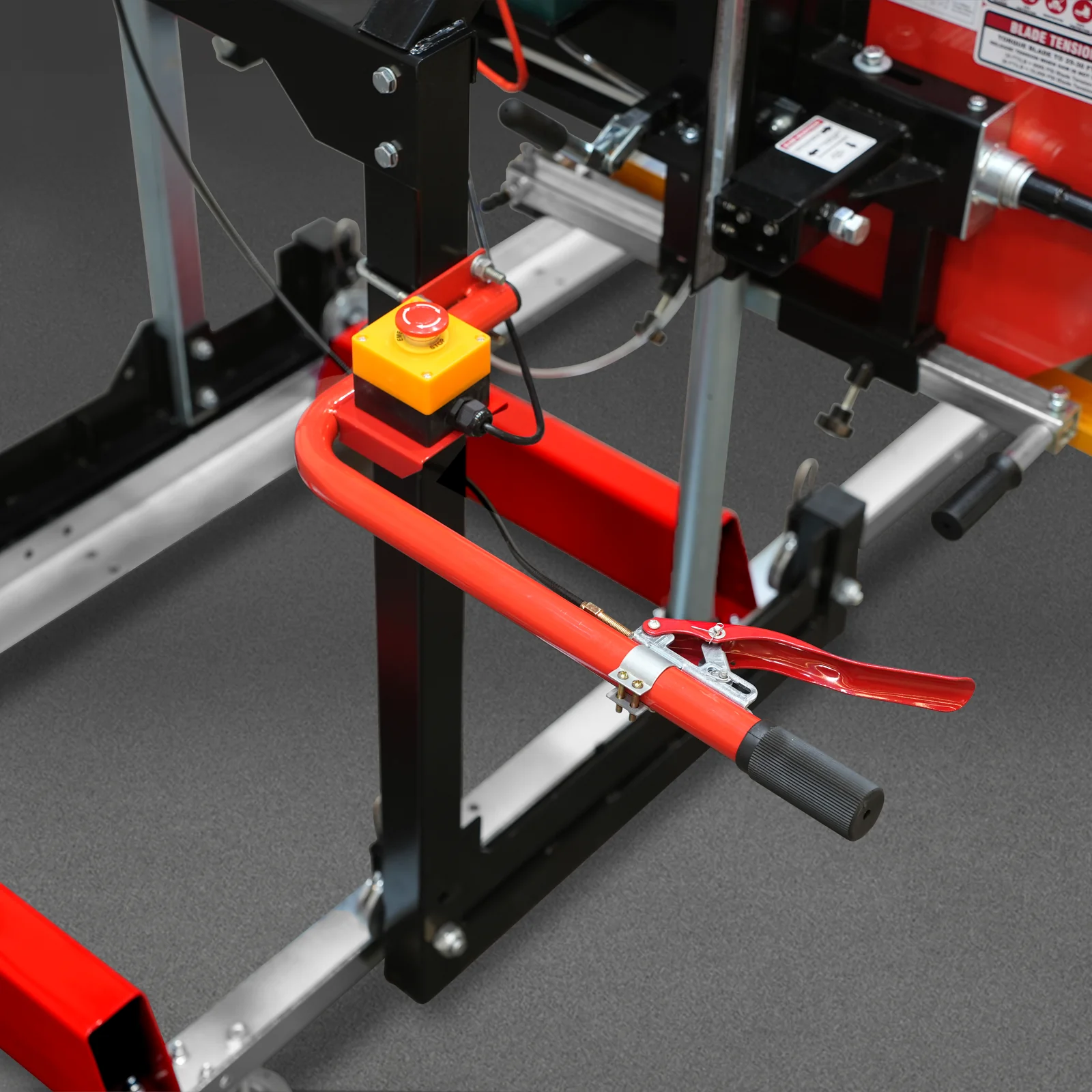

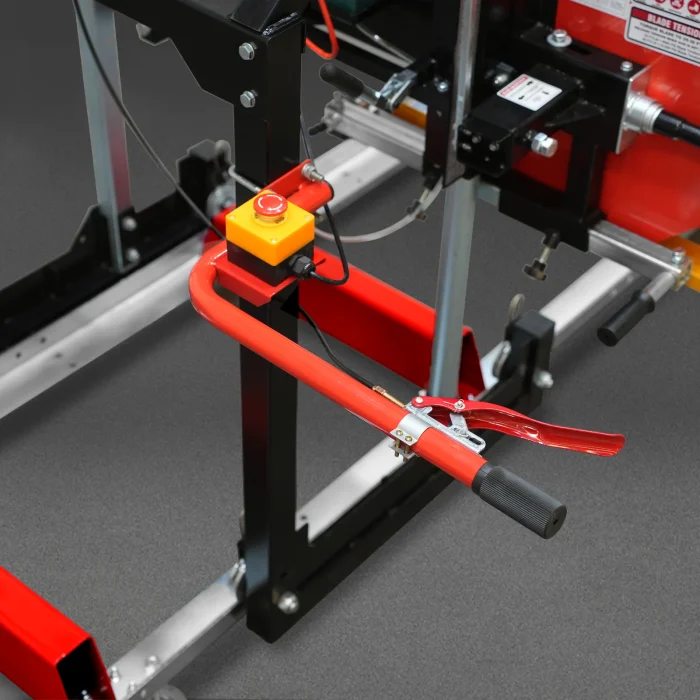

- You can manually adjust the saw head direction to have full control over the cutting process for a safer and smoother outcome.
Product Features:
Specifications :
| Engine | DUCAR DH420E | Lubricant Tank Size | 2.6 gal |

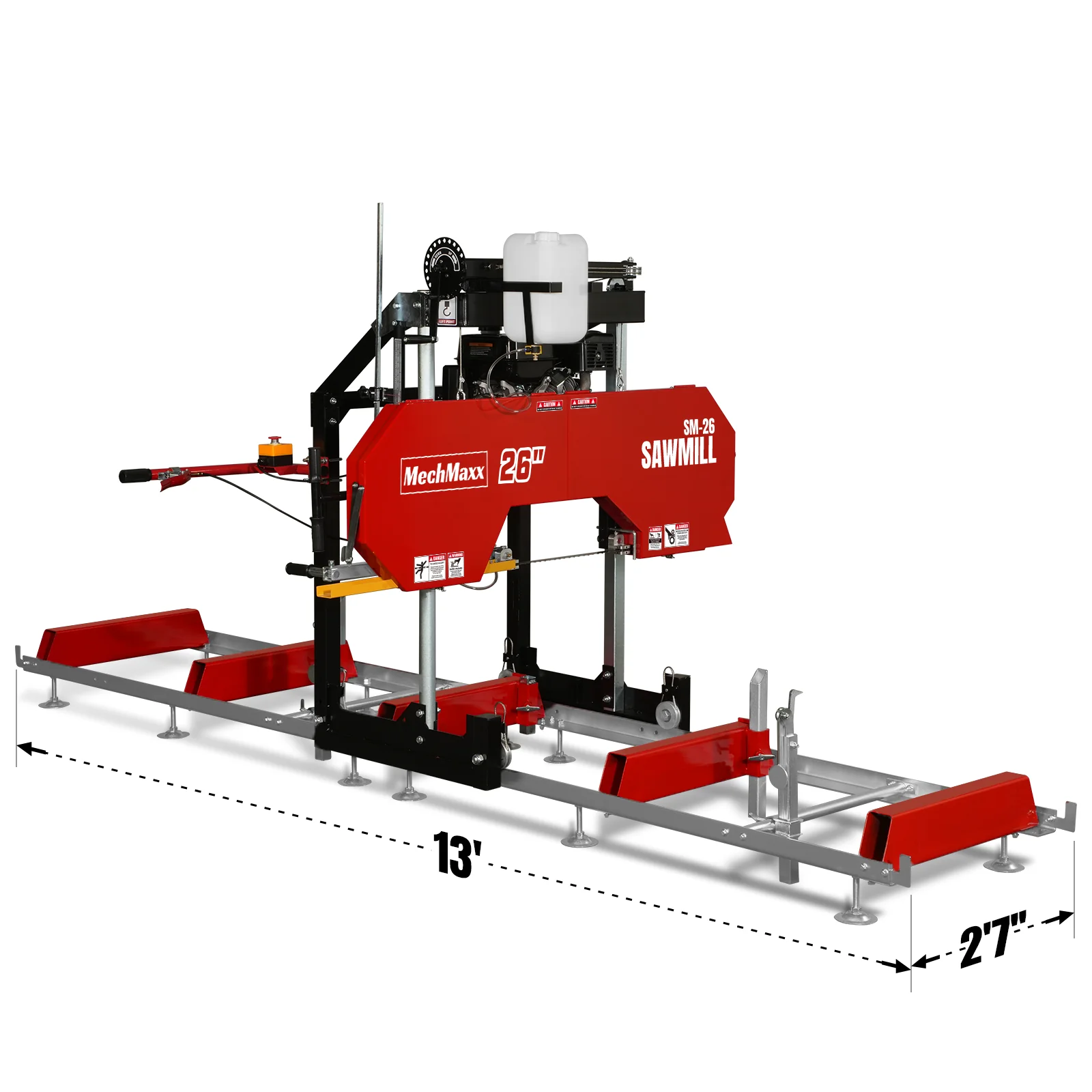

| Engine Type | Single Cylinder, 4 Stroke, Air-Cooled, OHV | Track Width | 2 ft 7 in |
| Engine Displacement | 420 cc | Track Length | 13 ft |
| Horsepower | 15 HP | Track Extension Length | 6 ft 5 in |
| Start | E-Start | Height (Max Head Position) | 79 in |
| Log Diameter | 26 in | Levelling Feet | 12 |
| Max Live Edge Width | 22 in | Log Rests | 2 Long and 2 Short Rests |
| Standard Cutting Length | 11 ft | Log Clamps | 2 x Quick Lock |
| Max Board Thickness | 7 in | Track Bunks | 3 x 6 in |
| Blade Engagement System | Centrifugal Clutch | 4 Post Head Design | Yes |

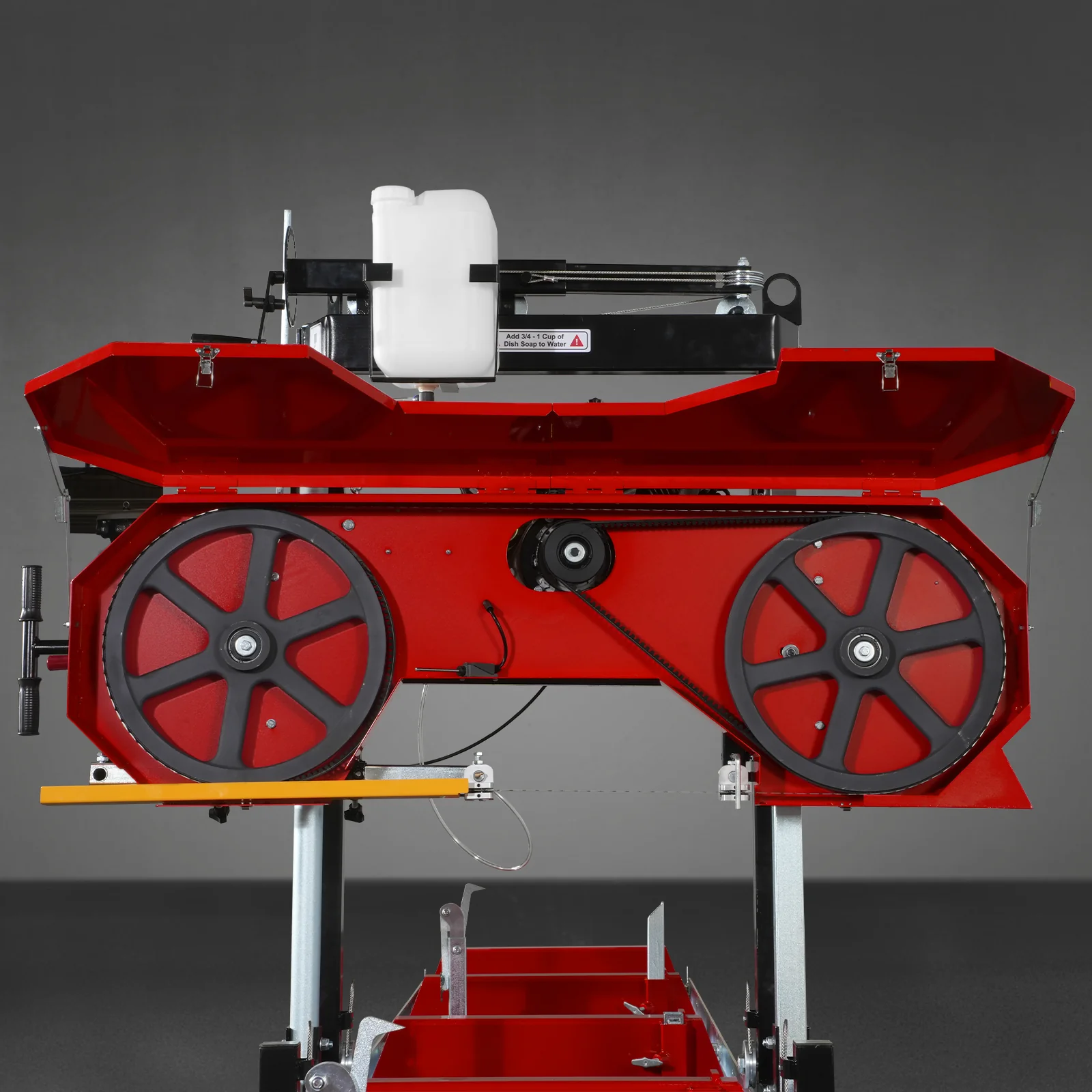

| Cast Iron Bandwheel Diameter | 19 in | Finish | Powder Coat Paint Galvanized Steel |
| Blade Wheel Engagement | Belt Drive | Sawmill Warranty | 2 Years |

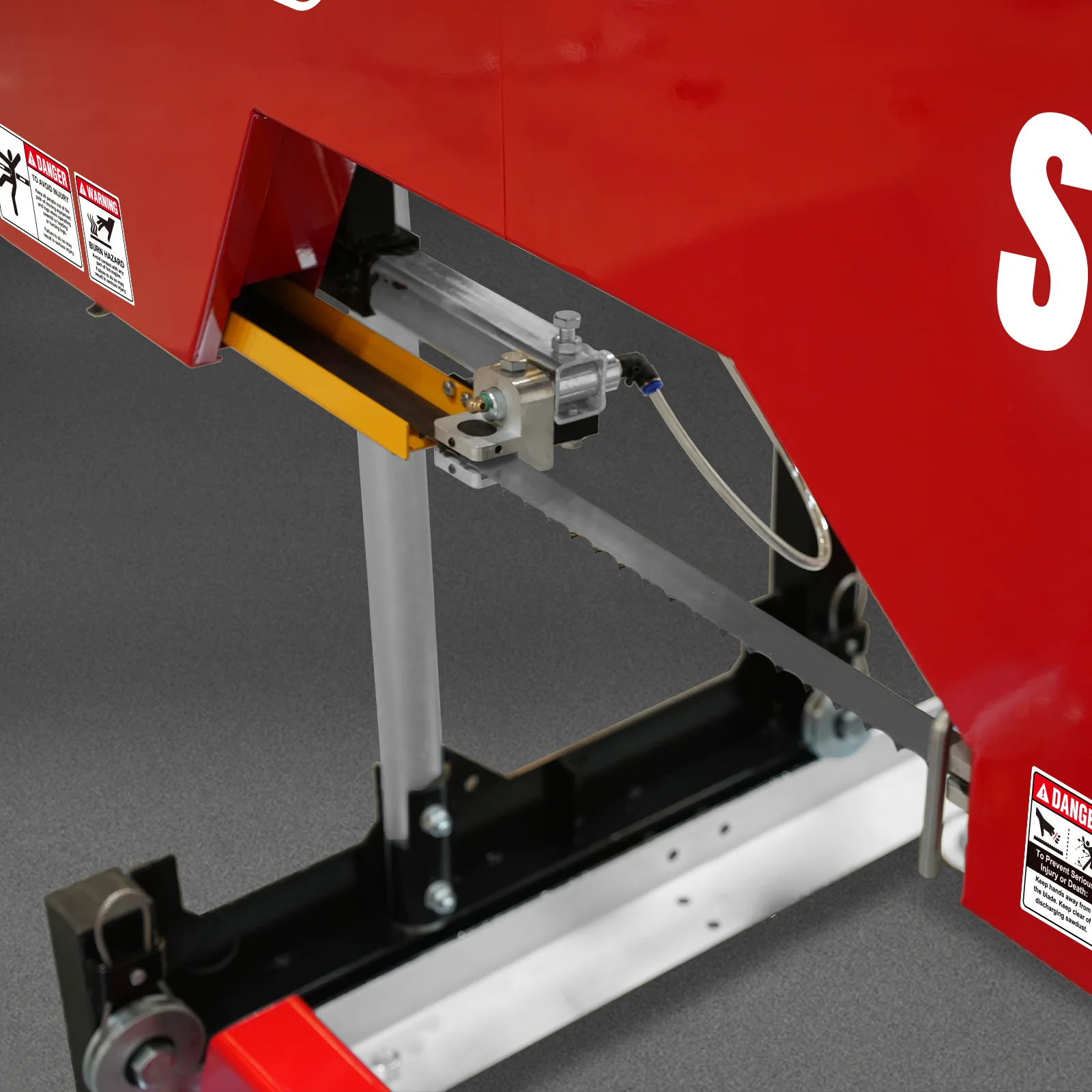

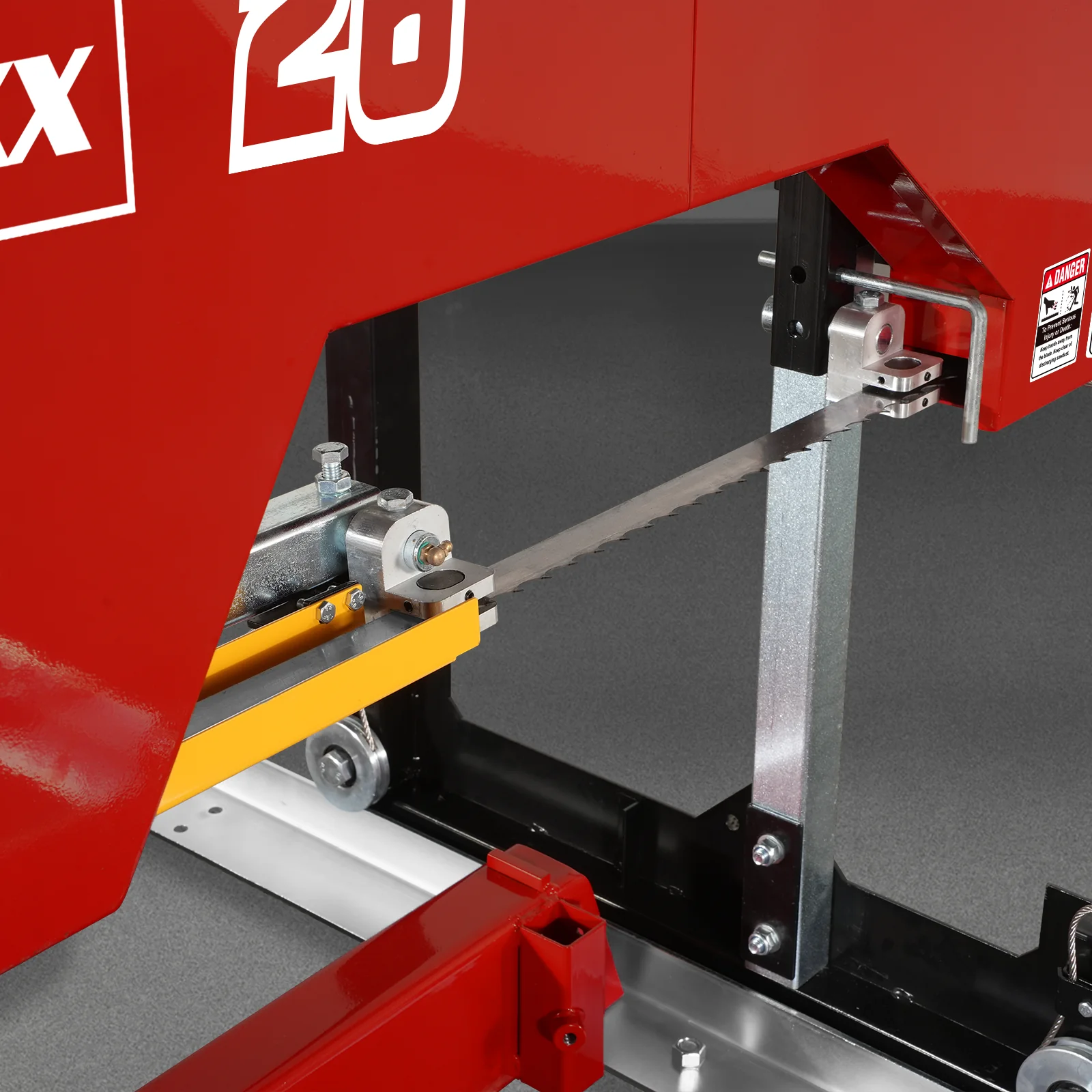

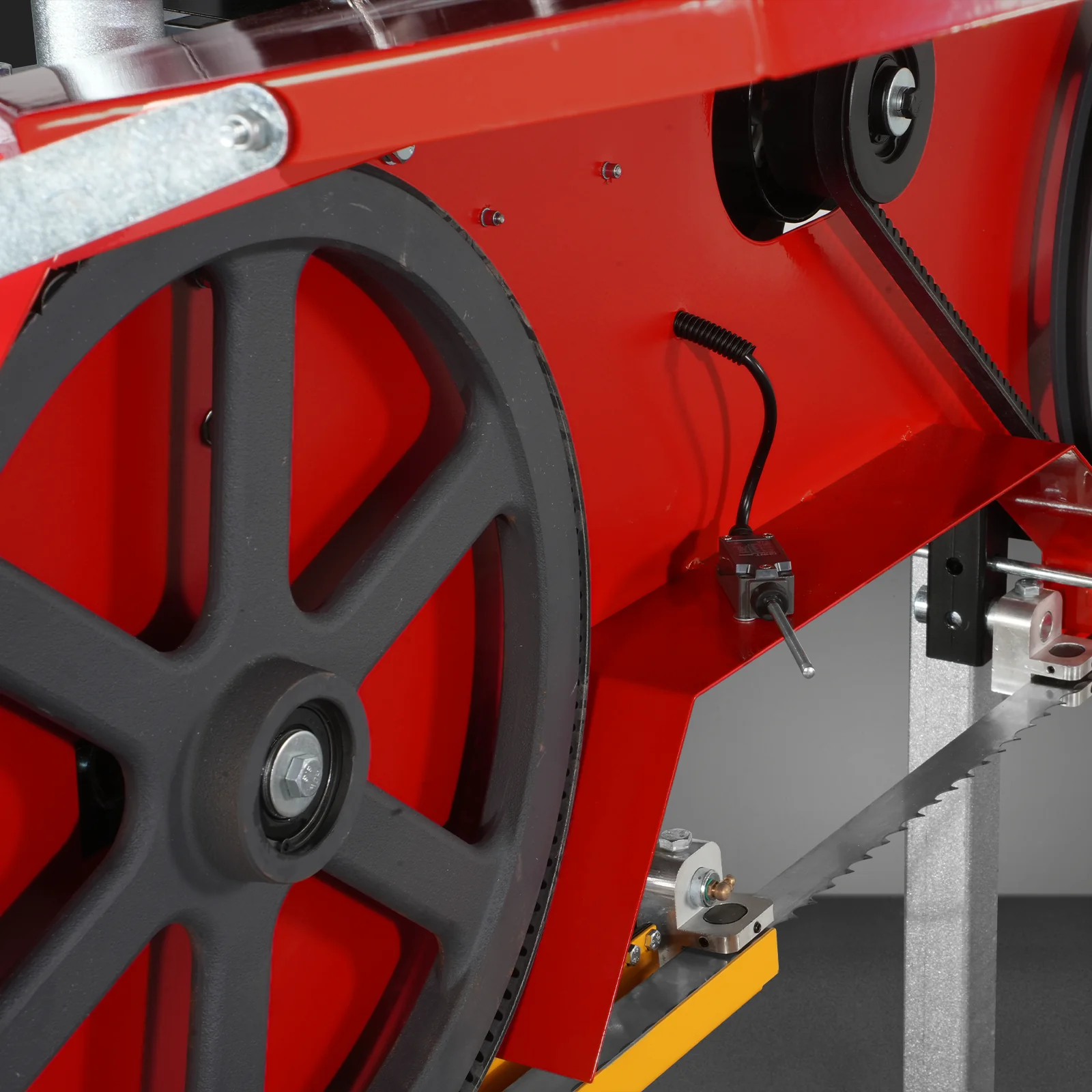

| Blade Guide | By Roller | Engine Warranty | 1 Year |
| Blade Tension | By Adjustable Lever | Package Method | Wood |
| Blade Size | 144 x 1.3 in | Packing Size | 88 x 26 x 34 in |
| Blade Pitch | 7/8 in | Weight (N.W./G.W.) | 728/816 lbs |
| Blade Lubrication | Water Lube – Manual Valve |
WARNlNG: This product can expose you to chemicals including engine exhaust (including diesel engine exhaust when equipped),lead and lead compounds, mineral oils, soots, phthalates, and carbon monoxide which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Certain specification(s) are based on engineering calculations and are not actual measurements. Specification(s) are provided for comparison purposes only and are subject to change without notice. Specification(s) for your individual equipment will vary based on normal variations in design, manufacturing, operating conditions, and other factors.
| Engine | DUCAR DH420E | Lubricant Tank Size | 2.6 gal |
| Engine Type | Single Cylinder, 4 Stroke, Air-Cooled, OHV | Track Width | 2 ft 7 in |
| Engine Displacement | 420 cc | Track Length | 13 ft |
| Horsepower | 15 HP | Track Extension Length | 6 ft 5 in |
| Start | E-Start | Height (Max Head Position) | 79 in |
| Log Diameter | 26 in | Levelling Feet | 12 |
| Max Live Edge Width | 22 in | Log Rests | 2 Long and 2 Short Rests |
| Standard Cutting Length | 11 ft | Log Clamps | 2 x Quick Lock |
| Max Board Thickness | 7 in | Track Bunks | 3 x 6 in |
| Blade Engagement System | Centrifugal Clutch | 4 Post Head Design | Yes |
| Cast Iron Bandwheel Diameter | 19 in | Finish | Powder Coat Paint Galvanized Steel |
| Blade Wheel Engagement | Belt Drive | Sawmill Warranty | 2 Years |
| Blade Guide | By Roller | Engine Warranty | 1 Year |
| Blade Tension | By Adjustable Lever | Package Method | Wood |
| Blade Size | 144 x 1.3 in | Packing Size | 88 x 26 x 34 in |
| Blade Pitch | 7/8 in | Weight (N.W./G.W.) | 728/816 lbs |
| Blade Lubrication | Water Lube – Manual Valve |
WARNlNG: This product can expose you to chemicals including engine exhaust (including diesel engine exhaust when equipped),lead and lead compounds, mineral oils, soots, phthalates, and carbon monoxide which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Certain specification(s) are based on engineering calculations and are not actual measurements. Specification(s) are provided for comparison purposes only and are subject to change without notice. Specification(s) for your individual equipment will vary based on normal variations in design, manufacturing, operating conditions, and other factors.
Frank Bargo –
Received my MechMaxx about a month ago just now got time and put it up over the weekend , we are very pleased and amazed with this sawmill , if you have been debating on ordering a MechMaxx mill this review is for you go for it saws pine logs with no issue
Clint Brown –
I purchased this through Amazon because I had Amazon credit can’t beat for the price. I was looking at wood-mizer and woodland Mills but at the end of the day for the price you get a bigger motor electric start you cannot go wrong. It was delivered on time great driver great trucking company very helpful. Very well packaged no damage whatsoever the instructions are excellent color pictures everything’s labeled couldn’t be easier. I’m going to be posting some YouTube videos on my MechMaxx 26 from assembly to use. I’m also looking at other mech Max products, if they’re half as good as this sawmill I’m going to be a purchaser. They are providing a high quality product that working men can afford. Thanks MechMaxx
Marvin Snow –
Got my sm26 up and running quickly, first thing I wanted to do is build a shed over it.my mill first job was pushing hard milling 26 ft long beams on a 16 ft bed.Ended up milling every piece of the 12 x 26 shed. Got to say the mill ran flawless, very happy with the sm26…
Jacob Hill –
I bought a sm26 mill. I received the mill very timely and and assembly was pretty straight forward. The mill is of very good quality and cuts very well. Love the mill, would highly recommend their mills though.
Jon –
This sawmill is great! Easy to assemble and use. My 75 year old father loves using it. My only issue was changing the blade. A must have for anyone with trees on their property that need to be cut.
Mike M. –
We are extremely pleased with this Sawmill and MechMaxx, the perfect example of a great piece of equipment provided by a great Vendor. We will soon be adding an extended rail to be able to mill longer length logs – we have no concerns that this sawmill can handle all that we ask of it.
Special Kudos to the MechMaxx Customer Service provided by Jerry – you will not find better!!
We highly recommend this Sawmill and MechMaxx!!
Todd Dryden –
Good transaction. Fast shipping. Mill looks great and everything is ready to go. Setup time was less than 7 hours with two people. Very solid, well constructed mill.
Shon Kopf –
Easy assembly. Fast shipping and friendly customer service. Even followed up with a phone call.
Simon –
The sawmill came well packed.it was easy to unpack.The setup was very easy.Instructions were very clear and easy to understand it seems well built and the motor started up first turn of the key
Danny –
Everything has worked amazingly, easy to set up and cuts like a charm. Also a great price. Milled some red oak, white pine, sugar maple as well as spruce and mill performed well, I purchased it to mill my own logs.
Rusty Lewis –
Would definitely recommend MechMaxx mills to anyone wanting a band sawmill, a quality product at an affordable price.
Steve Grant –
I purchased this mill to save on lumber costs due to having multiple projects. If you have a supply of lumber and want to save thousands of dollars, this is the only choice. The customer service is the best I have ever encountered and was a selling point in my decision on which mill to purchase.
George Stiltner –
This was an excellent purchase, once we got it together it fired right up and cuts like butter.
Mark Sharp –
Highly recommend this sawmill .This is not my first sawmill. I can honestly say this mill is the smoothest I’ve ever operated and own.
